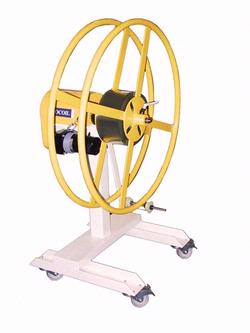

This unit can be use for either decoiling of raw strip or coiling of scrap strip. Rotation are slave by means of contact-less dancer arm control. Most suitable for strips that are thick and broad. Also suitable for plastic embossing processes.
Finished stamped strips that needs a secondary process can also be apply by incorporating with a Paper Winder. Other form of application can be improvised to suit your needs.
Features
- Speed monitoring via contact-less analogue sensor
- Forward/ Reverse rotation selectable
- Speed gain control adjustment
- Easy operation
- Best for thick and broad strips
Option
- Higher load and diameter on request
- Paper Winder for collection of interlayer paper
- With expansion
- Other voltage
Technical Data
| Model | SR 100 |
| Max coil diameter | 850 mm |
| Rotation speed | 0 - 21 rpm |
| Max load | 100 kg |
| Expansion | Fixed |
| Max coil width | 150 mm (to be specify) |
| Voltage | Single phase 220v 50/60hz |
