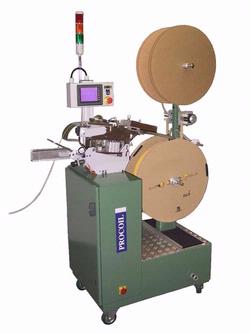

Designed to wind stamped strip onto reels up to diameter of 800mm. It comes with a adjustable chute for material guide that can take up to the designed width.
The speed is automatically controlled as well as the threading process and reel change. There is no need to stop the processing machine.
Intelligent features allows you to have full control over the process of winding the stamped strip This is done by a user-friendly programmable Touch Panel display.
With the magnetic tensioning device, handling the most ultra-delicate parts is a breeze. Compact and install within 1m from the processing machine.
Features
- Contact-less loop control via infra-red sensor
- Adjustable magnetic paper tension with paper tear monitoring
- Touch panel with fault diagnostic clear text display
- User friendly programmable parameter setting under part library
- Feed height adjustment for under forming strips
- Self-contained counting sensor
- Cutting of material at controlled spot
- Feed height adjustment for under forming strips
- Step movement of chute for quality reeling
- Automatic reel change
- Omron PLC
Option
- Joint detector for reel to reel plating
- Other reel size and width on request
Technical Data
| Model | AC 812 |
| Reel diameter | 580 - 800 mm |
| Max strip width | 50 mm |
| Max load/ reel | 30 kg |
| Linear speed | 0 - 25 m/min |
| No. of strip | single |
| No. of reel | 2 |
| Reel change time | 6 sec |
| Air supply | 6 bar |
| Voltage | single phase 200/220v 50/60hz |
