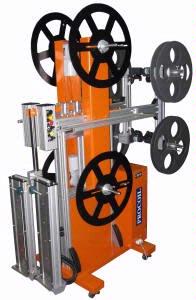

Designed specially for reel to reel plating and secondary operation of stamped strips. One reel running and another standby. Individual paper take-up for each reel with adjustable magnetic tensioning device. Programmable speed setting for each contact-less sensing device to control material loop. Most suitable for long pitch feeding process.
Able to handle ferrous and non-ferrous strip in raw or finished especially those that are very sensitive to handle. Option for conversion to dual usage which can be use as reeling or take-up are also available upon request.
Features
- Double strips in one construction
- Contact-less loop control via sensors
- Magnetic Paper Winder to wind up interlayer paper with torque control
- Forward and Reverse rotation
- Foot pedal selection to active reel
- Programmable speed setting for individual sensors
Option
- Part counting feature (reeling only)
- Dual usage for reeling and dereeling
- Double and multiple strips (see catalogue)
- With accumulator
- Other reel size and width on request
Technical Data
| Model | MD 824 |
| Max reel OD. | 750 mm |
| Max strip width | 50 mm |
| Max load/ reel | 30 kg |
| Line speed | 0 - 25 m/min |
| No. of strip | double |
| No. of reel | 4 |
| Paper winder | 4 |
| Voltage | Single phase 200/220v 50/60hz |
