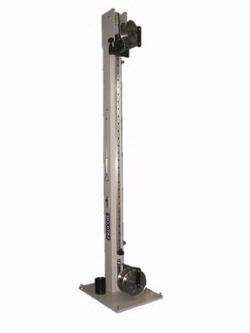

Strip accumulator helps to improve productivity during working process where it take up the extra slag while the processing machine is still running. Example of such application are buffer put into reel to reel plating for reel change, strip welding and even high speed stamping which the linear speed is extremely fast.
Able to accommodate up to 4-strips process in a single unit if required. Capacity of buffer can be customized up to 30m and roller material and size can be specify upon ordering.
Features
- Variable speed sensing device
- Strip tension by adjustable weight
- Over travel limit protection
- Stainless steel rollers
Option
- Other roller size
- Up to 4-strips construction
- Strip tension via electronic means
- Different machine height
Technical Data
| Model | ACCU -5 |
| Roller diameter | 150 mm |
| Strip width | 30 / 50 mm |
| Buffer length | 5 / 10 / 15 / 20 / 30 m |
| No. of rollers | depending on buffer length |
| No. of strips | 1/ 2 / 3 / 4 |
| Machine height | to be specify |
| Air supply | - |
| Voltage | - |
