Spend less time adjusting, more time stamping. Automatic speed range control to any demanding speed. Whole stack of strips can be loaded up to 1 m stack height.

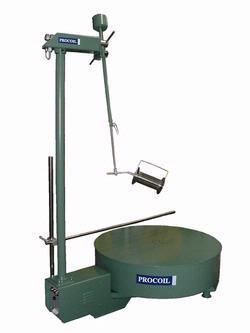

Table speed is automatically controlled to provide a constant smooth flow of material and accommodate the changing coil diameter. Pendulum loop arm and counter-balance weight adjustment provide natural flow with just the right amount of loop back tension for different material gauges.
Table speed is automatically controlled to provide a constant smooth flow of material and accommodate the changing coil diameter. Pendulum loop arm and counter-balance weight adjustment provide natural flow with just the right amount of loop back tension for different material gauges.
Features
- Full stack height of material loading
- Speed monitoring via contact-less sensor
- High constant torque at very low speed even at maximum load
- Left-hand/ Right-hand feed selectable
- Forward/ Reverse rotation selectable
- Over-pull limit protection
- Power-Off interlock protection
- Hold-down bar for very narrow strip
- Speed gain control adjustment
- Easy operation
- Best for soft and narrow strips
Option
- Higher load and diameter on request
- PU coating on roller
- Paper Winder for collection of interlayer paper
- With Straightener
- Bounce-less control type
- Other voltage
Technical Data
| Model | PL 920 PL1200 |
| Table diameter | 920 mm 1200 mm |
| Table speed | 0 - 40 rpm 0 - 28 rpm |
| Max load | 1000 kg 2000 kg |
| Strip thickness | 0.1 - 1.2 mm |
| Strip width max | 140 mm(depending on thickness) |
| Drive | 0.75 Kw 1.5 Kw |
| Voltage | single phase 200/220v 50/60hz |
